TA9210D 12.5W CW 30-4000MHz GaN Power Transistor

Active

Features

Frequency Range 30MHz to 4.0GHz

Features:

    • SS Gain 18dB@0.8GHz
    • LS Gain 13.5dB@0.8GHz
    • PSAT @ 0.8GHz 41.5dBm
    • PAE@PSAT@0.8GHz >55%
    • 28…32V Operating Voltage
Functional diagram

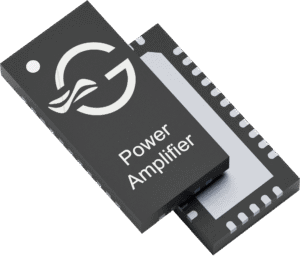

32-pin 6.0 x 3.0 mm2 QFN package
Datasheet
EDA model (bxl)
ADS model,
please request
from here.
Evaluation board

Buy from
TagoreTech inc.

support@tagoretech.com

Shop our distributors

Power Amplifier TA9210D EVBs

Part numberDatasheetStatusfmin
[MHz]		fmax
[MHz]		Linear Gain
[dB]		Psat [dBm]PAEVBuyNotes
TA9210D-EVB-ApdfActive30260014.6...19.441.0...42.040...78%32.0RFPDsupport@tagoretech.com
TA9210D-EVB-A2pdfActive30100017.8...23.740.4...41.764...79%28.0 / 32.0support@tagoretech.com
TA9210D-EVB-BpdfActive1800260015...1735.3...36.534...44%28.0 / 32.0RFPDsupport@tagoretech.com
TA9210D-EVB-CpdfActive3051219.7...21.128.0 / 32.0RFPDsupport@tagoretech.com
TA9210D-EVB-DpdfActive30100017.3...21.040.0...40.528.0RFPDsupport@tagoretech.com
TA9210D-EVB-D2pdfActive30100015.4...16.638.5...41.049…54%28.0support@tagoretech.com
TA9210D-EVB-EpdfActive3051218.9…19.840.1…42.056…72%28.0 / 32.0RFPDsupport@tagoretech.com
TA9210D-EVB-FpdfActive200270013.5…18.937.2…39.540…75%20.0RFPDsupport@tagoretech.com
TA9210D-EVB-GpdfActive700370012.9…18.240.0…41.045…62%28.0 / 30.0RFPDsupport@tagoretech.com
TA9210D-EVB-HpdfActive1200260015.3…16.840.9…41.438…60%20.0 / 28.0RFPDsupport@tagoretech.com
TA9210D-EVB-IpdfActive3300380012.4…14.336.0RFPDsupport@tagoretech.com
TA9210D-EVB-JpdfActive3000350013.1…13.440.0…40.249…50%24.0 / 28.0RFPDsupport@tagoretech.com
TA9210D-EVB-KpdfActive2100250016.6…16.940.1…40.847…55%28.0support@tagoretech.com
TA9210D-EVB-LpdfActive2400250018.3…18.541.0…41.375..77%28.0support@tagoretech.com
TA9210D-EVB-MpdfActive200200014.0…19.737.0…39.525…65%28.0support@tagoretech.com
