TA9410E 25W CW, 20-3000MHz GaN Power Transistor

Active

Features

Frequency Range 20MHz to 3.0GHz

Features:

    • SS Gain 20dB@1.0GHz
    • LS Gain 17dB@1.0GHz
    • PSAT @ 1.0GHz 44dBm
    • PAE@PSAT@1.0GHz 57%
    • 50V Operating Voltage
Functional diagram

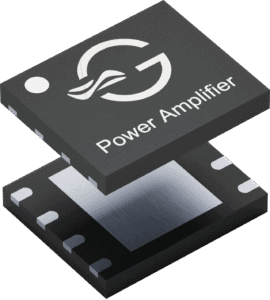

8-pin 6.0 x 5.0 mm2 DFN package
Datasheet
EDA model (bxl)
ADS model,
please request
from here.

Buy from
TagoreTech inc.

support@tagoretech.com

Shop our distributors

Power Amplifier TA9410E EVBs

Part numberDatasheetStatusfmin
[MHz]		fmax
[MHz]		Linear Gain
[dB]		Psat [dBm]PAEVBuyNotes
TA9410E-EVB-ApdfActive2052521.3...21.544.4...44.964...80%50.0RFPDsupport@tagoretech.com
TA9410E-EVB-BpdfActive20100020.3...21.444.6...45.356...78%50.0RFPDsupport@tagoretech.com
TA9410E-EVB-CpdfActive1400240016.0...16.545.4...46.545...57%50.0support@tagoretech.com
TA9410E-EVB-DpdfActive3080022.0...24.844.7...46.657...76%50.0support@tagoretech.com
TA9410E-EVB-EpdfActive5100530011.4...11.843.4...43.634...39%50.0support@tagoretech.com
TA9410E-EVB-FpdfActive3400380013.4...15.242.9...44.043...55%36.0support@tagoretech.com
TA9410E-EVB-JpdfActive13086017.5...20.247.1...48.651...54%55.0support@tagoretech.com
TA9410E-EVB-KpdfActive500250014.5...19.544.5...45.545...70%50.0support@tagoretech.com
TA9410E_TS8441L_EVB_GpdfActive3052019.5...21.044.0...44.557...72%50.0support@tagoretech.comCombination Switch + PA
