TR0329M Dual Stage Low Noise Amplifier

Active

Features

Frequency Range 2.0GHz to 4.2GHz

Electrical Specifications

    • Gain 34dB (high)
    • Gain 15 dB (low)
    • Noise Figure 0.5dB
    • OP1dB 19..20.5dBm

Operating Conditions:

    • VDD 5.0V
    • IDQ 90mA (high G)
    • IDQ 50mA (low G)
Functional diagram

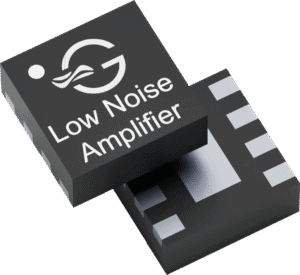

3.5 x 3.5 mm2 QFN package
Datasheet
EDA model (bxl)
Evaluation kit
