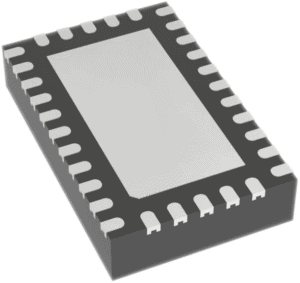

TS63560D - 4T/5T Binary weighted Tuning switch
Features
Frequency Range 30MHz to 1.0GHz
Independently controlled
- 5 GPIO control lines
- 1 GPIO for each switch throw
- Every throw can be independently controlled
Low loss:
- Binary weighted
- Ron(RF1,2,3) = 0.5 ohm
- Ron(RF4) = 1.0 ohm
- Ron(RF5) = 2.0 ohm
- Coff(RF1,2,3) = 500 fF
- Coff(RF4) = 250 fF
- Coff(RF5) = 125 fF
Insertion Loss:
- 0.08 dB @ 50MHz
- 0.10 dB @ 500MHz
- 0.13 dB @ 1000MHz
RF Peak Voltage 100V
Low power consumption, less than 1mW
Switching time 7.6us
P0.1dB compression point 42dBm
H2, Pin=35dBm, 800MHz, -118dBc
H3, Pin=35dBm, 800MHz, -115dBc
