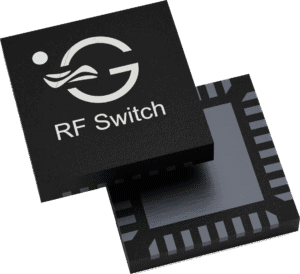

TS64210L SP2T Tuning switch, low Ron
Features
Frequency Range 1MHz to 3.0GHz
Independently controlled
- 2 GPIO control lines
- 1 GPIO for each switch throw
- Every throw can be independently controlled
Low loss:
- Ron = 1.1 ohm
- Coff = 0.28 pF
Insertion Loss
- 0.13 dB @ 100MHz
- 024 dB @ 1.0GHz
RF Voltage 120 V
Low power consumption, less than 1mW
Switching time 4.0us
P0.1dB compression point 46dBm
H2, Pin=45dBm, 800MHz, -86dBc
H3, Pin=45dBm, 800MHz, -79dBc
