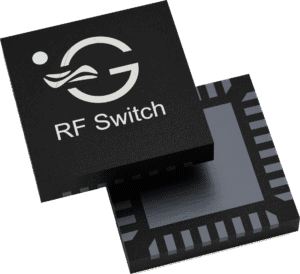

TS7421L SPDT 30W RF GaN Switch
Features
Frequency Range 30MHz to 5.0GHz
Low insertion loss:
- 0.30dB @ 0.8GHz
- 0.35dB @ 2.0GHz
- 0.75dB @ 5.0GHz
High isolation:
- 35dB @ 2.0GHz
- 22dB @ 5.0GHz
30W CW Power
Low power consumption, less than 1mW
Switching time 800ns
P0.1dB compression point 46dBm
H2, Pin=38dBm, 800MHz, -83dBc
H3, Pin=38dBm, 800MHz,-80dBc
