TS8541L SP4T 50W/125Wpeak RF GaN Switch

Active

Features

Frequency Range 30MHz to 4.3GHz

Low insertion loss:

    • 0.20dB @ 400MHz
    • 0.30dB @ 1.0GHz
    • 0.52dB @ 3.0GHz, matched

High isolation:

    • 43dB @ 1.0GHz
    • 23dB @ 3.0GHz

50W CW Power, 125Wp Peak Power

Low power consumption, less than 1mW

Switching time 2.3us

P0.1dB compression point 49dBm

H2, Pin=40dBm, 800MHz, -84dBc

H3, Pin=40dBm, 800MHz, -86dBc

Functional diagram
4.0 x 4.0 mm2 QFN package
Datasheet
S-parameters
EDA model (bxl)
Evaluation kit

Buy from
TagoreTech inc.

support@tagoretech.com

Precision Tech Advice.
Local Expertise


Chesapeake

Shop our distributors

Buy EVB

Digikey

RFPD

Insertion loss and Return loss upto 3.5GHz, matched
Insertion loss and Return loss upto 3.5GHz, matched
Insertion loss and Return loss upto 3.5GHz, matched
Antenna/RF-port to non-active port isolation, matched to 3.5GHz
RF-port to non active port isolation, matched to 3.5GHz
Insertion Loss and Return Loss, no matching components
Antenna port to non active RF port Isolation, no matching

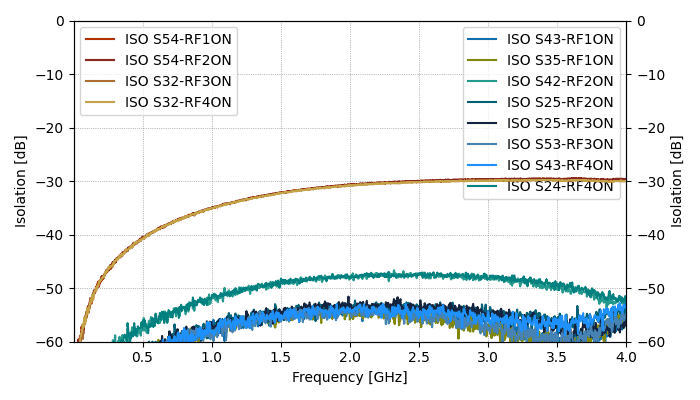

RF-port to non active RF port Isolation, no matching
