TSL8329M Dual Channel 20W 2.0-4.2GHz SW+LNA RFFE

Active

Features

Frequency Range 2.0GHz to 4.2GHz

Dual channel integrated in single component

Dual Switch and Dual Two stages LNAs

mMIMO Failsafe Switch LNA applications

Tx / Rx switch applications

High Performance Rx
    • Gain @ 3.6GHz 32dB
    • NF @ 3.6GHz 1.0dB
    • OP1dB@3.6GHz 20dBm
Functional diagram

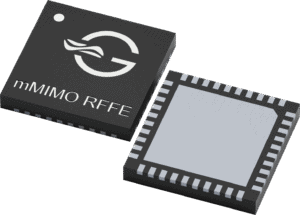

6.0 x 6.0 mm2 QFN package
Datasheet
S-parameters
EDA model (bxl)
