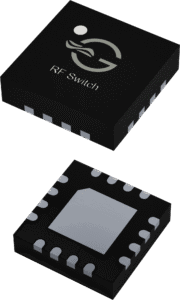

TSX221K 10W/50Wp SPDT X-Band RF GaN switch
Features
Frequency Range 0.5 – 12.0 GHz
Low insertion loss:
- 0.40dB @ 5.0GHz
- 0.60dB @ 8.0GHz
- 0.50dB @ 10.0GHz
- 0.80dB @ 12.0GHz
High isolation:
- 20dB @ 8.0GHz
- 20dB @ 10.0GHz
- 15dB @ 12.0GHz
10W CW Power
50Wp Peak Power
low power consumption, less than 1 mW
Switching time 50ns,
with no derating for power
P0.1dB compression point xxdBm
H2, Pin=xxdBm, xxxMHz, -xxdBc
H3, Pin=xxdBm, xxxMHz, -xxdBc
