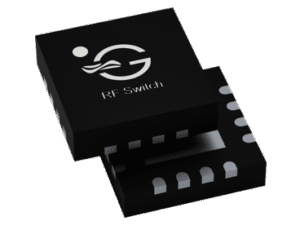

TS8223K SPDT 10W/50W_p RF GaN Switch

Features

Frequency Range 300MHz to 8.5GHz

Low insertion loss:

- 0.35dB @ 2.0GHz
- 0.40dB @ 4.0GHz
- 0.45dB @ 6.0GHz
- 0.50dB @ 8.5GHz

High isolation (S32):

- 46dB @ 2.0GHz
- 34dB @ 4.0GHz
- 28dB @ 6.0GHz
- 22dB @ 8.5GHz

10W CW Power, 50Wp Peak Power

Low power consumption, less than 1mW

Switching time 120ns

P_0.1dB compression point tbd dBm

H₂, P_in=40dBm, 800MHz, tbd dBc

H₃, P_in=40dBm, 800MHz, tbd dBc
